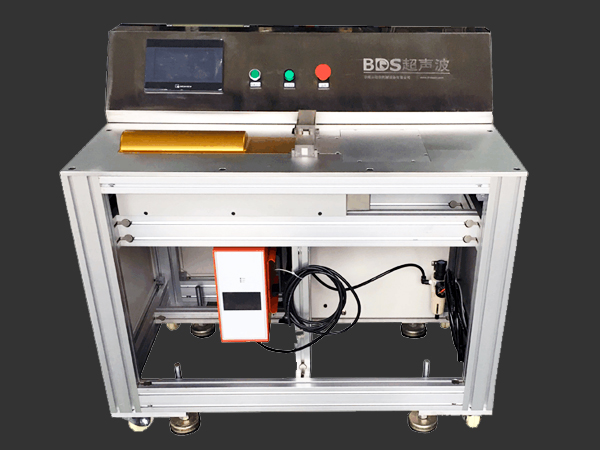

This machine is automatic adjust the welded width and length ,you just need input the welded width and length is OK .

And the machine with data membery stock function . You need which data which you have  stocked before . Just take it out !

It's more convenient ! Another this built with German circuit ultrasonic welding system . The output power is more strong and stable ...

SPECIFICATIONS

Frequency: 20 kHz nominal

Power output: 3.0 kW maximum

Voltage : 110V /220V

Ampere :16 Amps maximum

Air supply : 6.5 bar (94 psi) dry, clean air

Head Weight :30KG

Control Power :Module with integrated PLC control system

Splice range:0.5 mm ² to 32 mm ² cross section

APPLICATIONS

- Wire Splicing

- Wire Crimping

- Battery Cable Splicing
